- Material: Titanium
- Weight: 7.9 oz (225g)
- Dimensions: Packed: 4 1/8″ (D) x 4 1/8″ (H) (105mm x 105mm)
- Assembled: 4 1/8″ (D) x 8″ (H) (105mm x 205mm)
- Burning chamber (inner lower part): 3 3/4″ (95mm) (D) x 4″ (100mm) (H)
- Assembly: Please see the picture.
- Origin: China

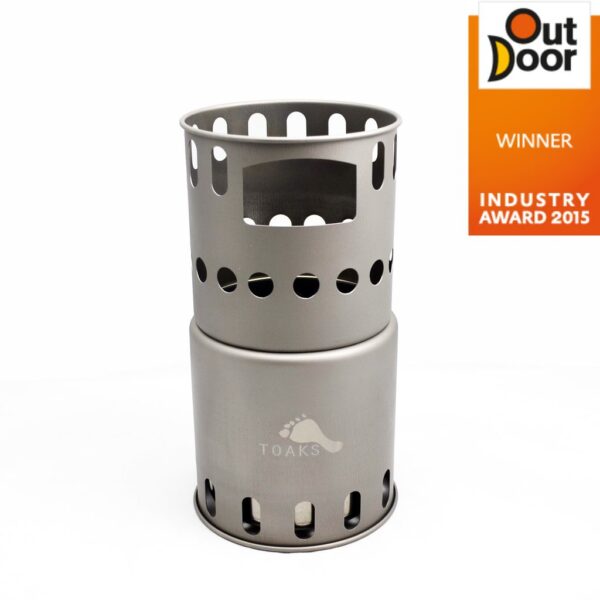

- TOAKS Titanium Backpacking Wood Burning Stove won Outdoor INDUSTRY AWARD 2015 Friedrichshafen, Germany, for its compact/light, easy to use and of high efficiency.
- The stove comprises of three parts, which can be stacked into each other and packed inside a nylon stuff sack.
- This stove can be nicely packed into TOAKS Titanium 1100ml Pot or 1600ml Pot to form a complete cooking system. If you want to add a drinking cup, TOAKS Titanium 450ml or 375ml Cup can nest into this stove set.
- Please see video demo.
- This wood stove’s high efficiency is achieved due to the wood gasification plus the multi-combustions mechanism.
- The mechanism diagram shows the optimized air intake based on the air/heat flow calculation.
- There are 2 air intakes (“air 1” and “air 2” as shown) from outside. “air 1” is divided into 2 parts: “air 1A” enters via the bottom holes into the stove; “air 1B” is heated between the double walls, enters into the stove via the top holes on the internal cylinder. “air 2″ is the air intake from the side holes of the top cylinder.
- When the wood is ignited and got heated, the wood gas releases from the wood due to the pyrolysis process. Emitted from the wood at the bottom of the internal cylinder, the wood gas mixes with “air 1A”, rises up and mixes with the hot air from “air 1B” and burns. This is the first combustion.
- The wood gas cannot burn completely at the first combustion. It continues to rise, mixed with “air 2” and burns. This is the second combustion. Then the remaining wood gas continues to rise and burn with air supplied from the top of the stove.
- At the end, the remain of the wood is fine white powder, which means a complete combustion.
For the best performance of this stove, it is key to burn the wood gas instead of wood since wood gas has much higher burning value. Generaly we suggest:
- Pack vertically-oriented sticks in the stove for the best space utilization.
- The space between the sticks is always sufficient for air flow even if the wood is packed tightly
- The more the wood sticks packed in the stove, the longer time it burns.
- Important: it is recommended for the wood sticks to be below the top side holes of the bottom internal cylinder; those holes are for the hot air (air 1B) to enter and mix with the wood gas so that they should be left open.
- If more wood needed, they can be added through the top small window. Please try not *keep on* adding wood while the stove is burning.
